What is a spot meter?

Spot Meters


Some photographers prefer to use a spot meter which only reads the intensity of light from a very narrow angle. This allows the reading to be taken from a very specific tonal area of the subject. In fact, the photographer can take a series of readings and know exactly where the tonal details of both the highlights and the shadows will fall on the film. The ASA film speed is dialed in and the reading transposed to a scale that gives the appropriate camera shutter speed and aperture. The subject is observed through a telescopic eyepiece and a superimposed circle shows the small area being measured. The meter is switched on by pulling a trigger and the correct f-number is lit up as a digital display.

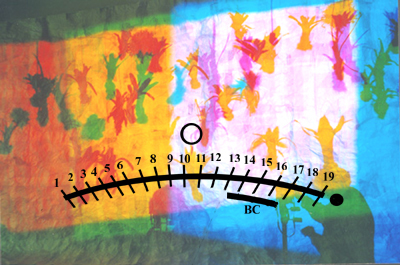

View through spot meter eye piece
meter is reading only the area in the circle above the 10 &11 on the scale.
The needle is pointing at a value of 13 which is then transferred to scale that gives the
correct aperture and shutter settings

BC  is the battery check
